PP high efficiency Melt Blown Filter Machine Melt blown Machine Meltblown Fabric machine
Product Description

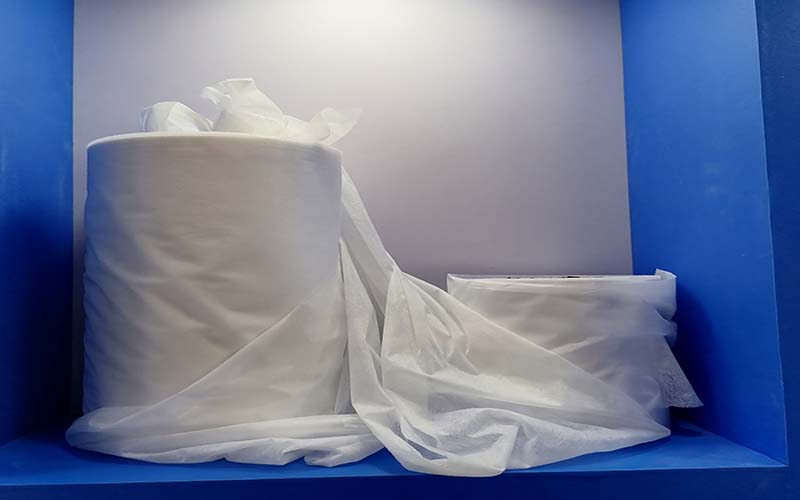

Use melt-blown cloth: PP melt-blown cloth is the main raw material, fiber diameter up to 0.5-10 meters. These ultrafine fibers have a unique increase in the number of capillary structures and surface area per unit area of the fiber, so melt-blown blowers have good air filtration and are a good shielding material. In large and medium-sized medical institutions, earthquake and flood areas, SARS and avian influenza epidemics, in the H1N1 virus epidemic season, blown filter paper with its ultrafiltration performance plays an irreplaceable role. Melt-blown cloth is mainly used for: A. filtration material B. medical and health material C. environmental protection material D. Clothing material e. battery diaphragm material f. wipe material
| Meltblown Nonwovens Mainly Applications |
| Nonwoven Sanitary product | Female hygiene,child and baby hygiene,Incontinence products,pads ,Absorbing pads ,Functional inserts for controlled absorption |
| Nonwoven Absorbents product | Absorbent cloths and wiping cloths,liquids (benzene,water ,blood),Media for oil absorption |
| Nonwoven Filtration Product | Air ,Gas,liquids(benzene,water,blood),etc. |
HHM-1600 Melt Blown line data
| Effective Width | 1600mm |
| Weight Range | 15-300 g / ㎡ |
| Out put day | 2-3 ton |
| Machine speed | 10-70 m/ min |
| Transformer | ≈600 KVA |
| Power consumption | 3000º - 3500º / ton |
| Machine Size | 18 *10 *10 M |
HHM Melt Blown line catalog
| Effective Width | 1.6 M | 2.4 M | 3.2 M |
| Weight Range | 18-300 G/㎡ | 18-300 G/㎡ | 18-300 G/㎡ |
| Out put day | 2-3 Ton | 3-4 Ton | 4.5-5 Ton |
| Machine Speed | ≦40 m/min | ≦40 m/min | ≦40 m/min |
| Power Consumption | 3000º-3500º/Ton | 3000º-3500º/Ton | 3000º-3500º/Ton |
| Machine Size(L*W*H) | 18M*10M*10M | 18M*11M*10M | 18M*13M*10M
|
| Product Name | Spunbond non-woven production line | Technology | Rhine ,Germany |
| Type | M,S,SS,SSS,SMS,SSMS,SSMMS | Spinneret | Size 0.45mm,10500 holes |
| Lead Time | 90 - 108 days | Trade type | Manufacturer |
| Payment | 15% deposit 80% before shipping 5 % after line running | Perfomance | 3 - 25 tons / day |
| Location | Chuzhou city Anhui province , China | Warranty | 1 year |
| Near sea port | Nanjing / Shanghai | SIZE | 1600 - 4800 mm
|
Melt blown process and technical flow chart:
Raw material →Melting→Filtering→Measureing→Air heating→Spraying→Web forming→Winding→Cutting→Final product
Meltblown non-woven fabric production line components:
Screw extruder---->filter---->metering pump---->heating system---->melt blown box (Kasen)---->netting machine---- >Rewind
Raw Material Dosing Machine
Weight system: by weight; Hopper : 4 pcs; Accuracy:0.01%; Feeding Percentage: 1-99%; Original:USA/ITALY;

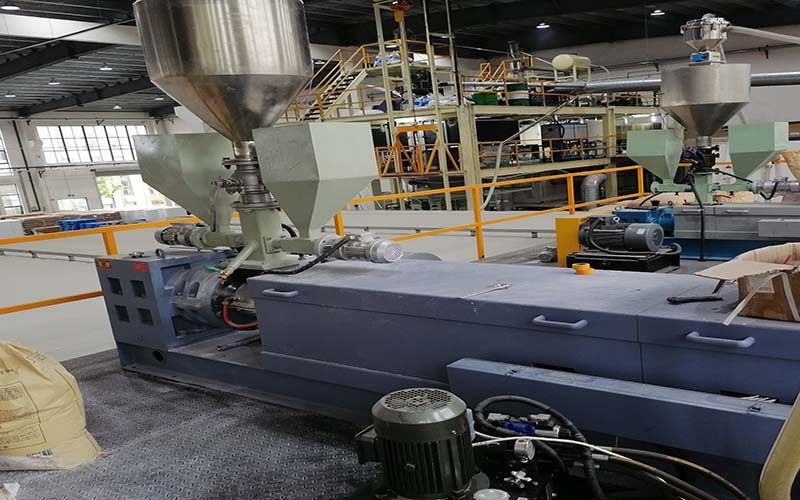

Extrusion Machine
Aperture:90 300kg/h 1pc;
Heating System: electricity heating; Drive Motor: Siemens; Original:CHINA;

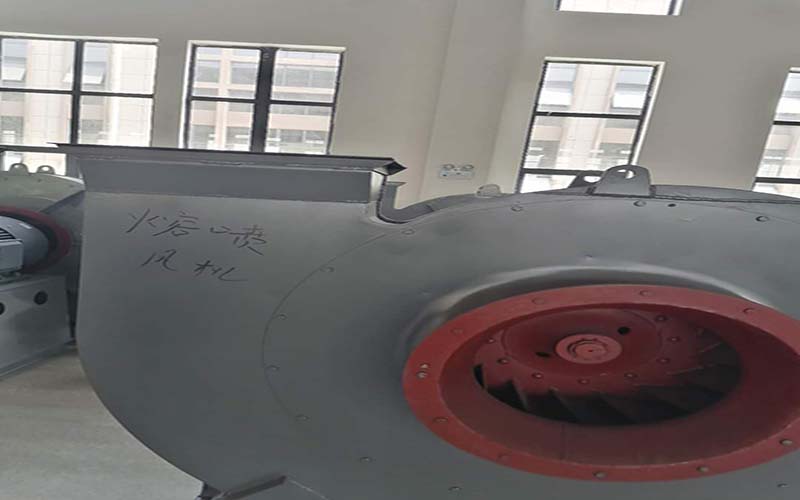

Two cooling blower for each other pressure gauges, pressure switches, air channel transfer baffles, air oil and water filter separators, cooling fan control cabinet and so on. Two cooling fans share a control cabinet to automatically control the start and stop of the two typhoon machines. The cooling wind can be taken directly from the air or from the outlet of the fan.
Meltblown die head assembly
maximum temperature: 300.;
Max.output:200kg/h;
Heating zone:8tod;
Perforated length:3,350mm;
HPI:40;
1 Sets L/D=10; Number of holes:5.276;
Capillary diameter:0.3mm;
Capillary length:3,600mm;

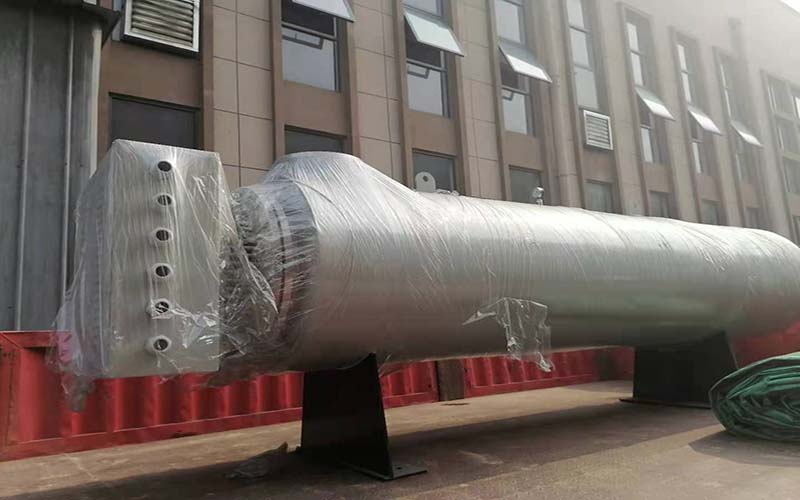

Meltblown heater
Melting injection cloth heater is an electric heating device installed in a tube insulation container to heat gas and liquid.Melting-blown cloth heater has fast heating speed, good insulation performance and high heating temperature.
Production Line Control Cabinet
Voltage: 380 V/3 Phase; Touch Screen:Siemens; PLC: Siemens; Frequency:Siemens; Indicator: RKC,JAPAN; Original:CHINA;

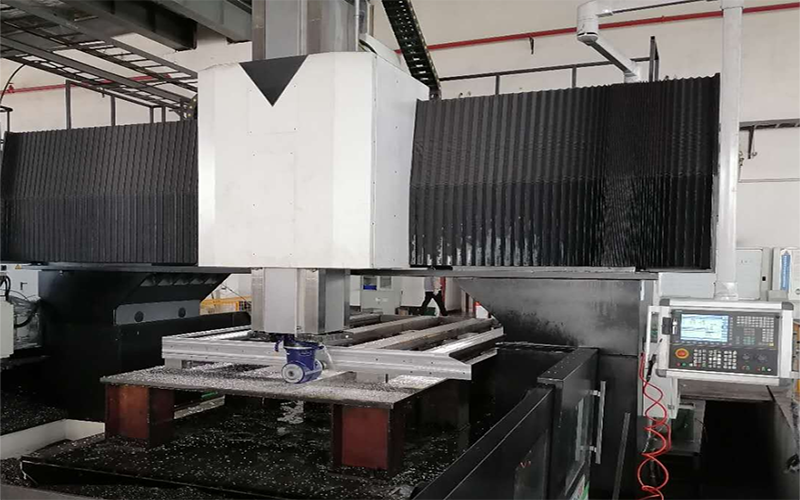

High Precisely CNC center hold machining parts beyond customer request .
Exhibition show with customer

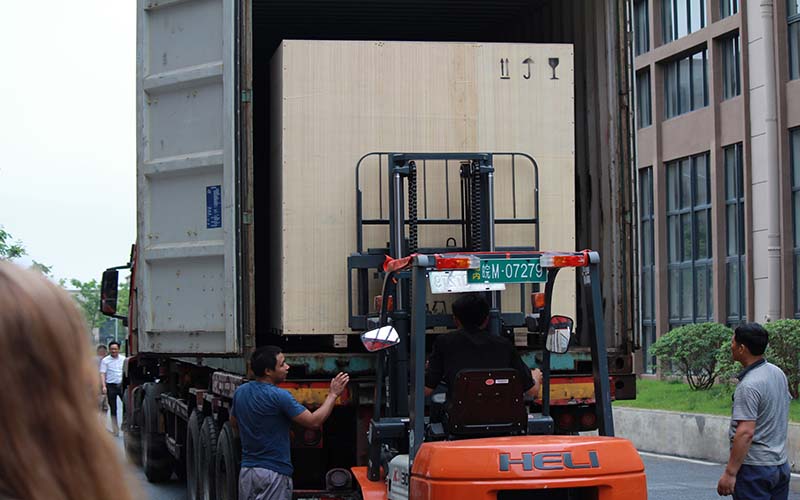

Packaging Details
Main machine parts will be packed with wooden cases.Electrical parts will be packed with plastic and then packed into wooden cases.For the steel structure they will be packed in bulk into containers.
How to start the Nonwoven fabric manufacturing business ?
All potential buyers should check below factors if you want to produce nonwoven fabrics .
- Enough project investment : This nonwoven fabric machine cost ＄200000 to ＄5000000 Ave.
- Workshop space for nonwoven fabric machine 200 -500 ㎡,space length 30 meter , width 10 -20 meter , height 11 meter
- Nonwoven fabric machine operation team 4 - 6 workers
- Polypropylene raw material and additives 5 tons each day .
- Stable electricity supply system 380 V.
Our service
1.Pre-sale Service
Employees have a special sense of responsibility and excellent teamwork spirit, so the machine adopts unique and outstanding components, which meet the highest standards of the nonwoven industry.
With the support of modern technology, to provide all customers with the best solution machinery Claim.
2.After-sales Service
Our customer service can answer inquiries.
We only believe that: the best machine with innovative ideas and high-quality after-sales service: "will meet your special requirements."
